TP8 Series

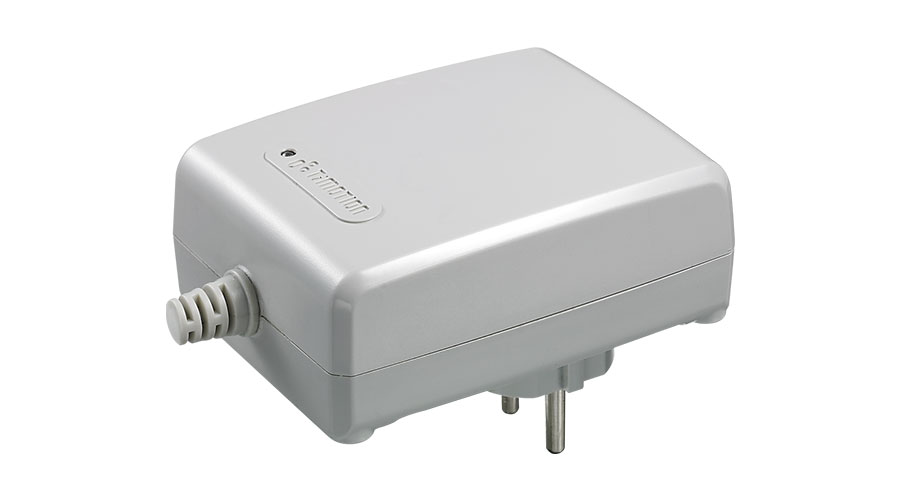

The TP8 is a wall-mounted medical power supply designed to meet the demanding requirements of modern healthcare equipment. Using SMPS (Switched-Mode Power Supply) technology, it supports an input voltage of 100~240V AC and delivers up to 29V DC at 6.25A. Certified to IEC60601-1, ES60601-1, and IEC60601-1-2 standards, the TP8 ensures patient and operator safety in clinical environments. It offers IP66 protection for use in medical settings. Available in black or grey, the TP8 supports plug types for EU, USA, AUS, and UK, making it a versatile medical-grade power solution for global applications.

General Features

• Transformer type: SMPS

• Input voltage: 100~240V AC

• Max. output: 29V DC, 6.25A

• Plug support: EU, USA, AUS, UK

• Color: Black or grey

• IP rating: Up to IP66

• Certificate: IEC60601-1, ES60601-1, IEC60601-1-2

• Operational temperature range: +5°C~+45°C

• Wall mount design

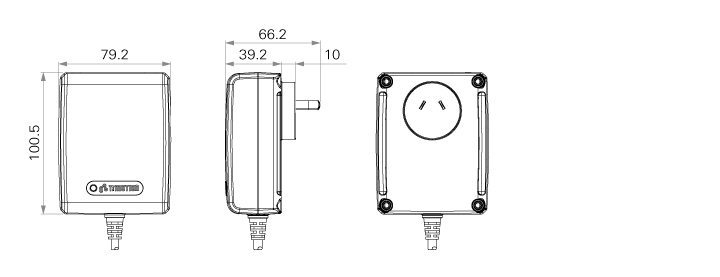

Dimensions with AUS Plug (mm)

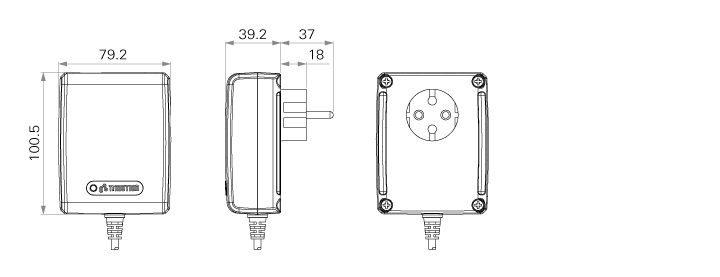

Dimensions with EU Plug (mm)

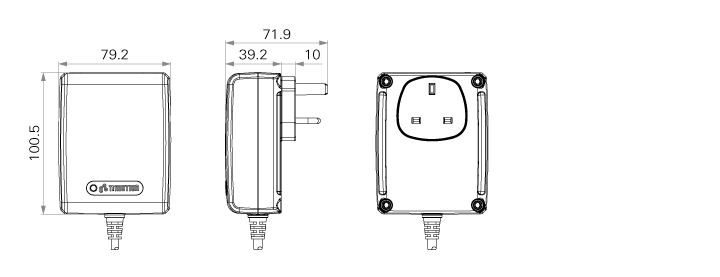

Dimensions with UK Plug (mm)

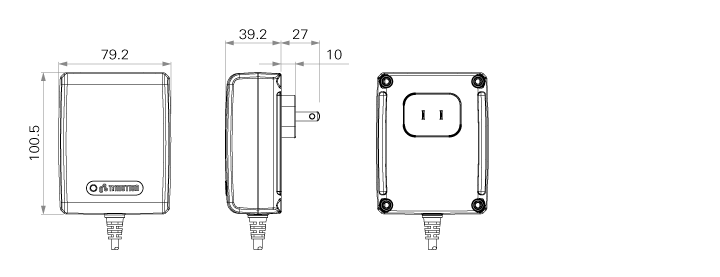

Dimensions with USA Plug (mm)
