TFS3 Series

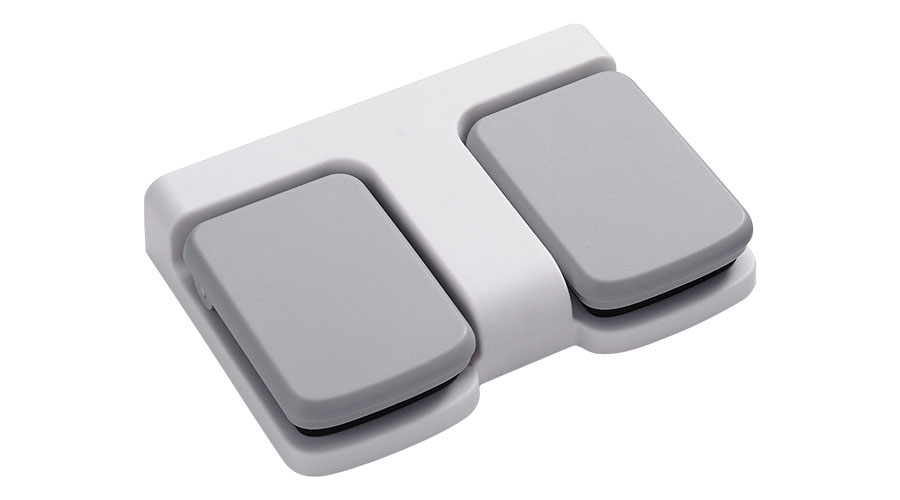

The TFS3 is a compact and robust foot control designed for applications requiring high reliability and ease of use. Engineered with an IP66 rating, it ensures consistent performance by resisting dust and moisture even in demanding environments. Compatible with direct-cut systems or battery power and offering wireless support, the TFS3 is a key component of TiMOTION’s electric linear actuator systems. It provides users with precise control and flexible integration, making it an ideal solution for a wide range of motion control requirements.

General Features

• Max. available buttons: 2

• IP rating: IP66

• Options: Back up battery

• Wireless support: Available

• Direct cut support: Available

• Operational temperature range: +5°C~+45°C

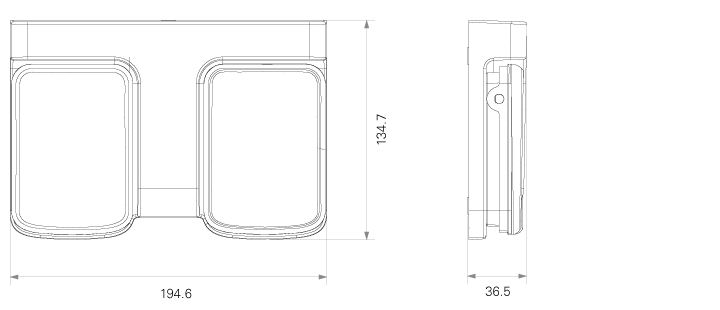

Standard Dimension (mm)
