TNP6 Series

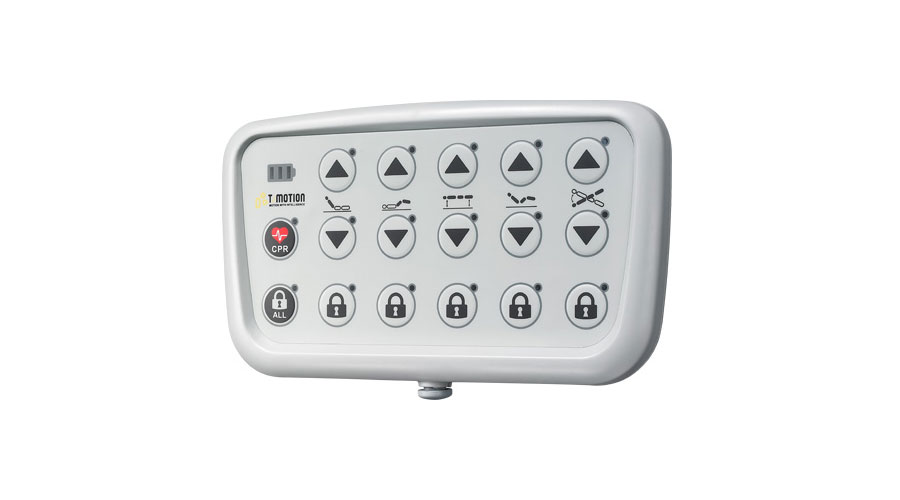

The TNP6 is a nursing control panel designed for advanced medical applications. It supports up to 7 motors and offers as many as 17 buttons, making it ideal for multifunction hospital beds and other patient care systems. With IP66W protection, TNP6 ensures safety and durability in demanding environments. The panel can be hooked onto a bed rail for easy access and also functions as a lock-out box when safety is a priority. Optional backlighting enhances visibility, and a built-in safety key provides added control. The TNP6 pairs seamlessly with the TC8 control box to manage up to 7 actuators, offering full positioning flexibility for optimal comfort.

General Features

• Number of motors: 7

• Max. available buttons: 17

• Color: Black, grey

• IP rating: IP66W

• Options: Backlight

• Safety key: Available

• Operational temperature range: +5°C~+45°C

• Control up to 7 channels in connection with TC8

• Can hook on the rail

• Can be used as lock-out box

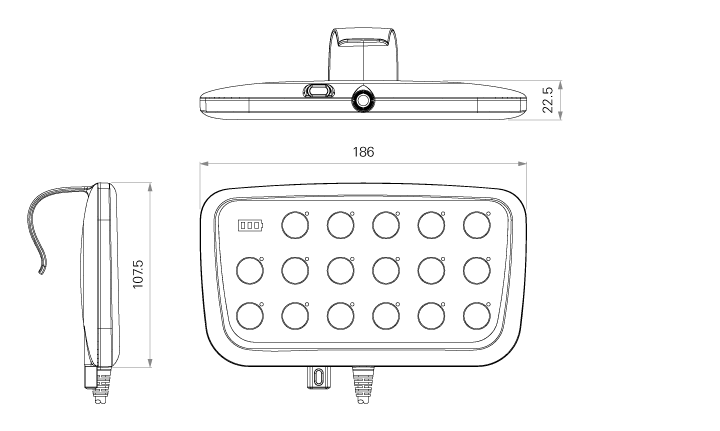

Standard Dimension (mm)
