TNP6 Series

The TNP6 is a nursing control panel designed for advanced medical applications. It supports up to 7 motors and offers as many as 17 buttons, making it ideal for multifunction hospital beds and other patient care systems. With IP66W protection, TNP6 ensures safety and durability in demanding environments. The panel can be hooked onto a bed rail for easy access and also functions as a lock-out box when safety is a priority. Optional backlighting enhances visibility, and a built-in safety key provides added control. The TNP6 pairs seamlessly with the TC8 control box to manage up to 7 actuators, offering full positioning flexibility for optimal comfort.

產品特色

• 可連接的馬達：7

• 最多可支援的按鍵數：17

• 顏色：黑、象牙白

• 防水等級：IP66W

• 其它選項：背光功能

• 有無安全鎖：有支援

• 工作溫度範圍：+5°C~+45°C

• 可與TC8系列的控制盒連接，最多可控制7支推桿

• 可懸掛於床側板上

• 可當作鎖盒使用

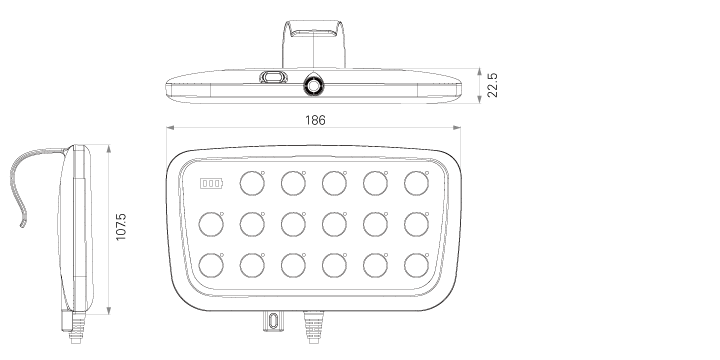

標準尺寸 (mm)
